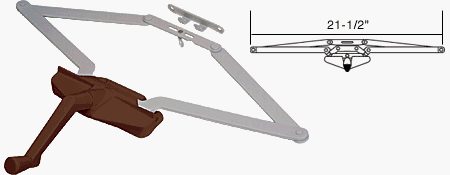

CRL Bronze 21-1/2" Roto-Gear Awning Window Operator - EP23008

The CRL Roto-Gear Awning Window Operator has a single center pull point and is non-handed. Operator base and crank handle are made from diecast zinc and all gears and arms are made from hardened steel for a long operating life. It is designed to provide positive control of the sash in any position. A simple detach feature disengages operator from sash for quick window removal. The concealed mounting screw holes are set at 4-1/4", 3-1/2" and 2" (108, 89 and 50.8 mm) on center. One operator with hook and installation screws per package. For sashes needing extra support, a separate torsion pull bar is available to replace the smaller single attachment bracket.

Positive Sash Control | Crank Handle and Sash Bracket Included | 11/32" Spline Size
