CAPELLA 135 Degree Glass-To-Glass Clip
Regular price
$28.50
Couldn't load pickup availability
Product Overview
| Edge Profile | Beveled |
| Glazing Thickness (in.) | 3/8 to 1/2 |
| Material | Brass |
| Glass-to-Glass Angle | 135 |
| Mount Type | Glass to Glass |
| Width (in.) | 2.5 |
| Height (in.) | 2 |

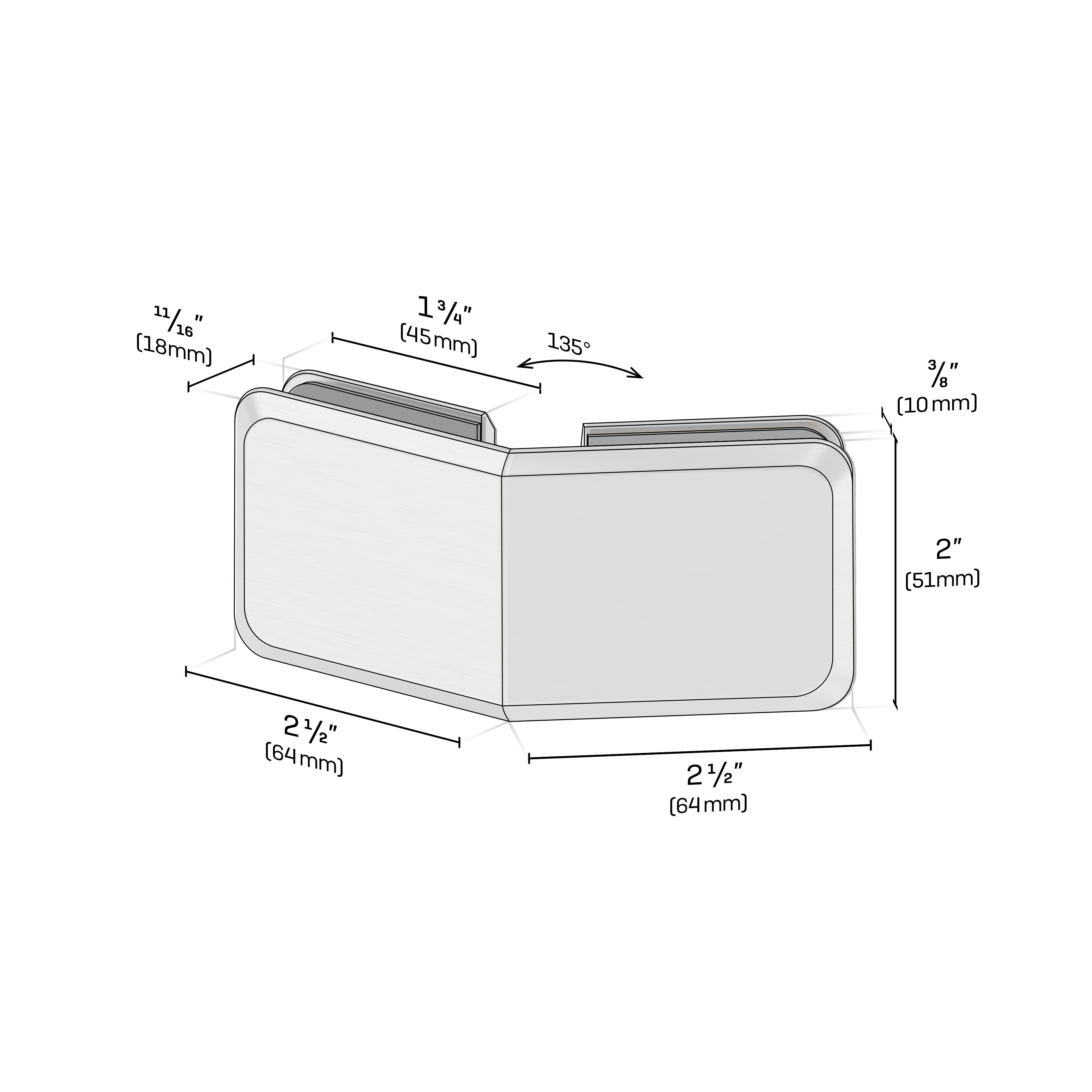

The Future Glass Capella B135 is a high-quality, beveled 135-degree glass-to-glass clip designed to secure two fixed panels of a frameless glass shower enclosure. Future Glass fixed gaskets for faster installation time. The images provided are of the actual product or a closer representation. Colors may vary depending on your screen settings.
- NOT compatible with FG Glass Panels
- Solid brass construction
- Choose from several superior hardware finishes
- Glass fabrication needed to accommodate clips
- Requires a 3/4" (19 mm) hole in glass panel
- Use with 3/8" (10 mm) or 1/2" (12 mm) tempered safety glass
- Includes screws and wall tile plugs
Substitution: Carina Hardware: CAR-SQ135-
Guidelines and Templates:
