CERES 135 Degree Glass-To-Glass Hinge
Couldn't load pickup availability
Product Overview
| 5 Degree Preset | No |
| Adjustable | No |
| Edge Profile | Beveled |
| Glazing Thickness (in.) | 3/8 to 1/2 |
| Material | Brass |
| Glass-to-Glass Angle | 135 |
| Max Door Weight (lbs.) (2 Hinges) | 130 |
| Max Door Weight (lbs.) (3 Hinges) | 160 |
| Max Door Width (in.) (2 Hinges) | 36 |
| Mount Type | Glass to Glass |
| Self-Centering | Yes |

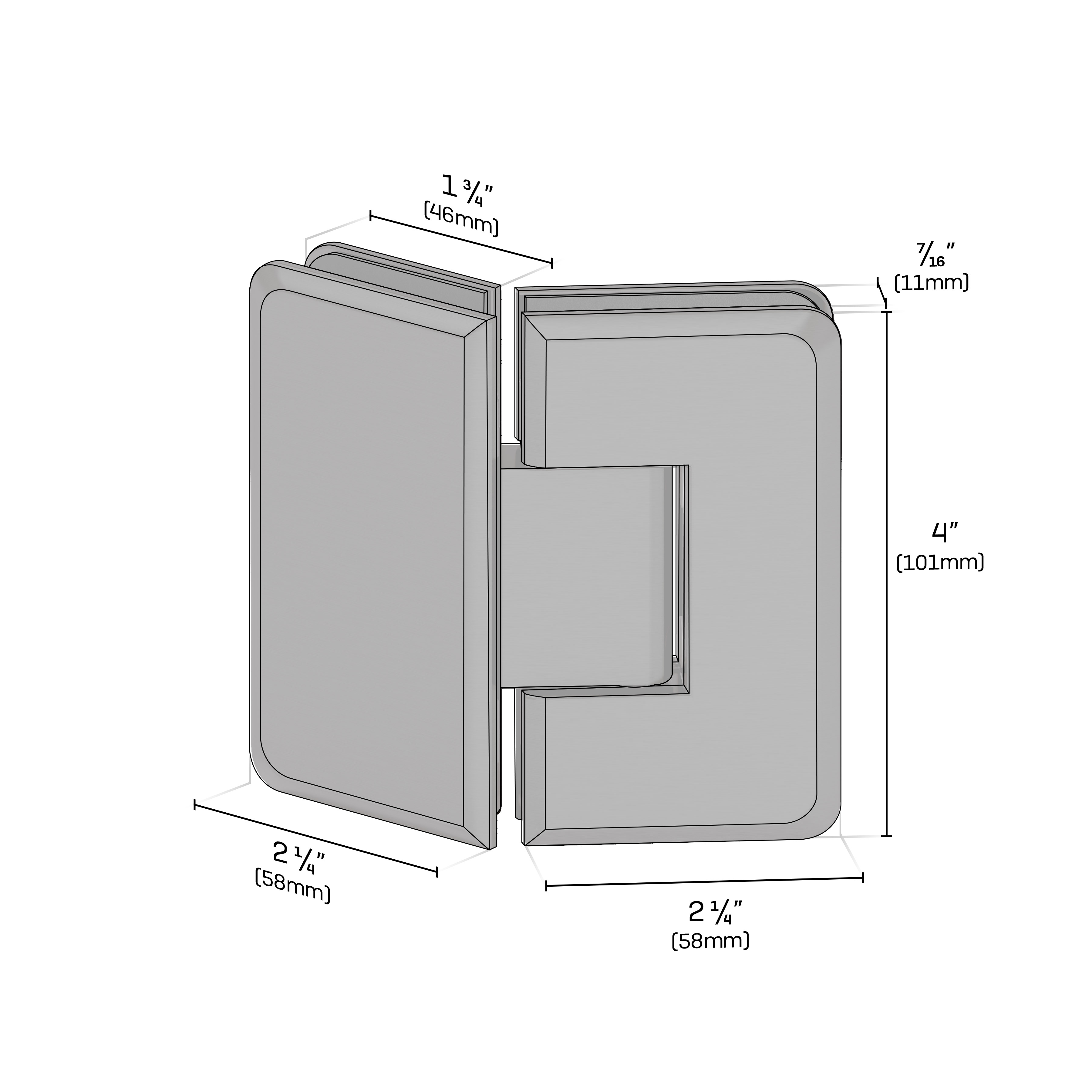

| Width (in.) | 2.25 |
| Height (in.) | 3.9375 |
The Future Glass Ceres 135 Degree Glass-To-Glass Hinge is made from high quality solid brass. Functionally equivalent to our Volans hinge, the Ceres mid-size hinge features radius corners, beveled edges and supports door weights up to 130 lbs. Unlike other brands, Future Glass hinges features a fixed rubber gasket designed to reduce door slippage. The unique square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a closer representation. Colors may vary, depending on your screen settings.
- NOT compatible with FG Glass Panels
- Solid brass construction
- Total allowable door weight (2 hinges) - Up to 130 lbs. (59 kg) and maximum door width of 36"
- Use with 3/8" (10 mm) or 1/2" (12 mm) thickness tempered safety glass
- Fast Fit technology easy slide-on hinge
- Fixed gaskets to prevent door slippage
- Available in several finishes
Substitution: VOLANS HINGES: V0L-135-
Guidelines and Templates:
