CERES 90 Degree Glass-To-Glass Hinge

In stock
SKU: CRS-90GM-CH
Regular price $84.00
Color
 More payment options

Product Overview

 5 Degree Preset No
Adjustable No
Edge Profile  Beveled
Glazing Thickness (in.) 3/8 to 1/2
Material Brass
Glass-to-Glass Angle 90
Max Door Weight (lbs.) (2 Hinges) 130
Max Door Weight (lbs.) (3 Hinges) 160
Max Door Width (in.) (2 Hinges) 36
Max Door Width (in.) (3 Hinges) Glass to Glass
Mount Type Yes
Self-Centering 2.25
Width (in) 3.9375
Height (in.)

The Future Glass Ceres 90 Degree Glass-To-Glass Hinge is made from high-quality solid brass. Functionally equivalent to our Volans hinge, the Ceres mid-size features radius corners, beveled edges and supports door weights up to 130 lbs. Unlike other brands, Future Glass hinges feature a fixed rubber gasket designed to reduce door slippage. The unique square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinges to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a closer representation. Colors may vary, depending on your screen settings.

  • NOT compatible with FG Glass Panels
  • Solid brass construction
  • Total allowable door weight (2 hinges) - Up to 130 lbs. (59 kg) and maximum door width of 36"
  • Use with 3/8" (10 mm) or 1/2" (12 mm) thickness tempered safety glass
  • Fast Fit technology easy slide-on hinge
  • Fixed gaskets to prevent door slippage
  • Available in several finishes

Substitution: VOLANS HINGES: V0L-90GM-



Guidelines and Templates:

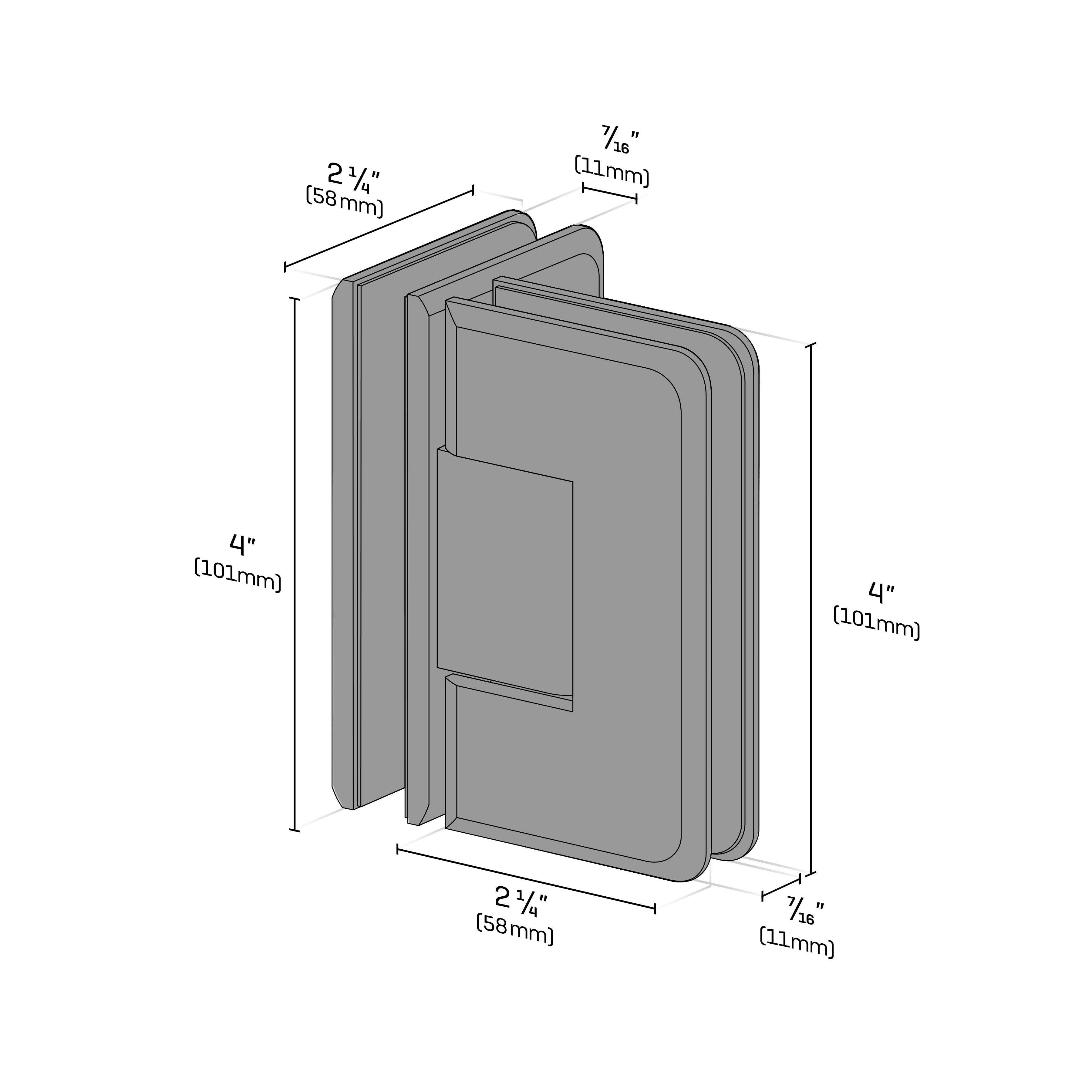

Ceres 90 Glass to Glass Hinge Dimensions

Ceres 90 Glass to Glass Hinge Template
