CRL 1" Wide Mortise Lock and Plate with 45 Degree Keyway - E2189
Regular price
$49.30
Couldn't load pickup availability
Product Overview
| Keyway Orientation | 45 Degrees |
| Lock Body Depth | 1-5/8 |
| Lock Body Length | 3-3/16 |
| Lock Body Width | 1/2 |
| Material | Steel |
| Mounting Holes Top And Bottom | 5-1/4 |

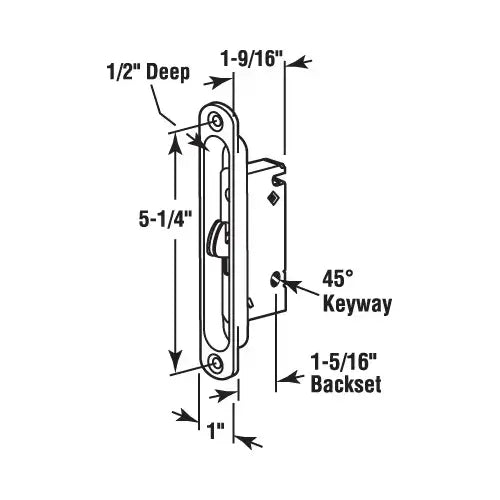

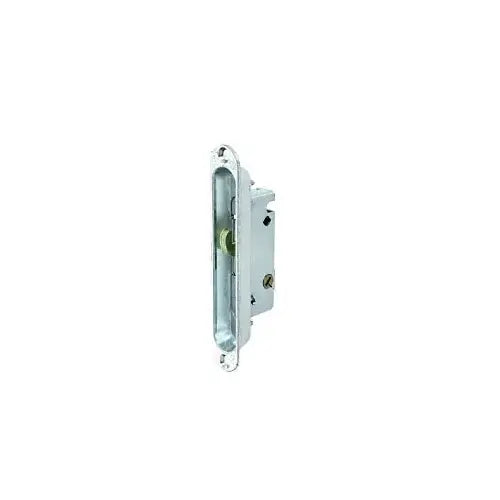

C.R. LAURENCE E2189 CRL 1" Wide Mortise Lock and Plate with 45 Degree Keyway. This CRL Mortise Lock has a 1 inch (25.4 millimeter) wide steel housing. The hook projection is adjustable and the keyway is in a 45 degree position with the hook fully extended. The lock has a round end face plate. This unit works with Cat. No. E2125 Keeper.. Part Numbers Variations: E2189
45 Degree Keyway | 5-1/4" (133.4 mm) Screw Holes
