Product Overview

CRL Prima 5-degree Pre-Set Hinges are specially designed for use with tempered safety glass that is 5/16" (8 mm) to 3/8" (10 mm) thick and are carefully crafted to ensure a secure closure. Each door installation will require both the #1 Pin and the #2 Pin hinges. The #1 Pivot Pin Model should be positioned at the top left or bottom right of the door, while the #2 Pivot Pin Model is to be placed at the top right or bottom left of the door. These innovative 5-degree Pivot Pins allow the door to close 5 degrees further into the shower enclosure for a tight closure against a strike jamb. Furthermore, these hinges can be mounted on the floor and ceiling, or within the Deluxe Header System.

Specifications:

• Number One Pivot Pin Model For Mounting at Top Left or Bottom Right of Door (Viewed from Outside)
• Pre-Set 5 Degree Pin for a Secure Door Closure

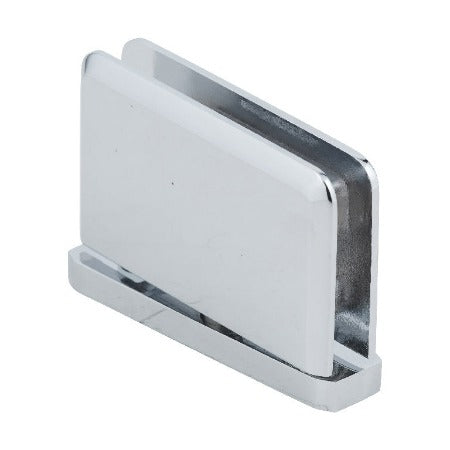

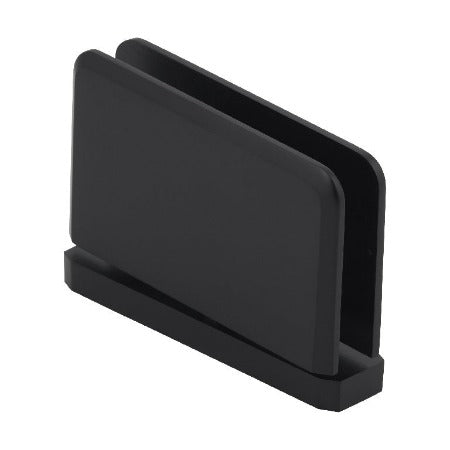

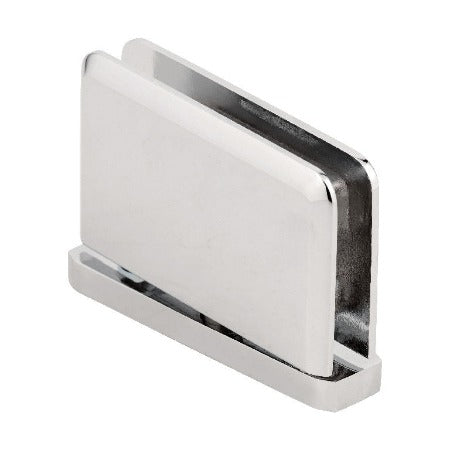

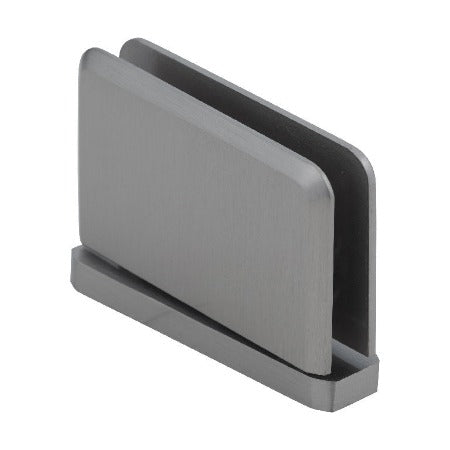

• Available in Multiple Stunning Finishes
• 3 Year Warranty
• Compatible with Monolithic Tempered Glass
• U.S. Patent 5,297,313

Product Warning: CRL Shower Door Hinges are exclusively designed for residential or hotel shower use.
