CRL Brushed Stainless Glass Rail Standoff Base and Cap - RS0B2134BS

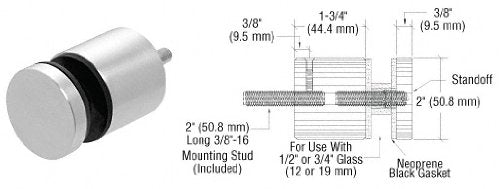

C.R. LAURENCE RS0B2134BS CRL Brushed Stainless Glass Rail Standoff Base and Cap - 1-3/4" Projection. These heavy-duty CRL Glass Rail Standoff Base and Caps work with hand or guard railings. The standoff fitting is 2" (51 mm) diameter and 1-3/4" (44.5 mm) long. It comes with a 3/8"-16 x 2" Allen Stud for mounting, along with necessary rubber washers and grommet. Use Spanner Wrench Cat. No. SSW12 to tighten the cap. Fabricated with #316 grade stainless steel in brushed or polished finishes.

Product Warning:
For use with 11/16" & 27/32" (17.52 mm – 21.52 mm) tempered laminated glass. Do not use with raw or annealed glass) NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.

High Grade Alloy 316 Stainless Steel Standard | For Use with 1/2"-27/32" (12-21.52 mm) Tempered Monolithic or Tempered Laminated Glass | For Mounting to Steel, Concrete, or Wood Substrate | Compact Design with Base, Cap, and Mounting Stud
