Product Overview

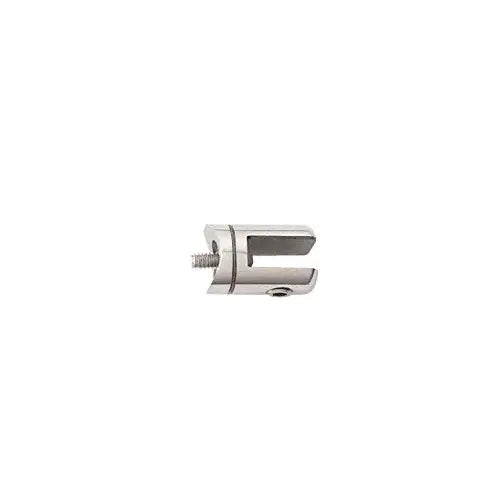

CRL Swivel Hinge Glass Fittings allow the glass panel to be swiveled up for access when attached to our Round Tubing and the glass. Works with both 1/4" to 3/8" (6 to 10 mm) glass. Fitting is for 1-1/2" (38 mm) Tubing and supplied with a 1/4"-20 Flat Head Screw. NOTE: Will not fit properly if installed on 2" (51 mm) diameter Round Tubing.

Radius Mounting Base for 1-1/2" (38.1 mm) Diameter Round Tubing | 1/4" and 3/8" (6 and 10 mm) Thick Glass is Secured with a Vinyl Gasket and a Nylon Tipped Set Screw

• Radius Mounting Base for 1-1/2" (38 mm) Diameter Round Tubing
• 1/4" to 3/8" (6 to 10 mm) Thick Glass is Secured with a Vinyl Gasket and a Nylon Tipped Set Screw
• Use Monolithic Tempered Glass

Guidelines and Templates:
