Product Overview

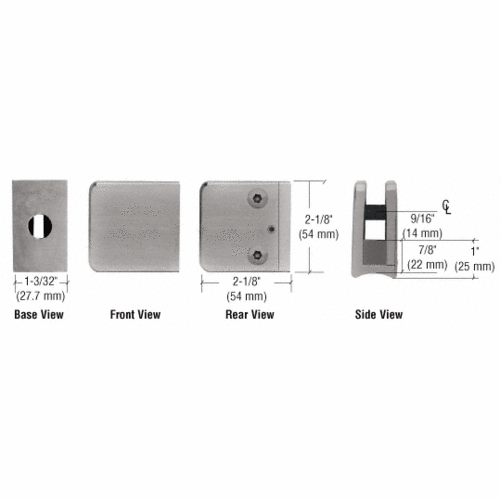

CRL Z-Series Clamps are available in round or square shapes and are constructed from either economical zinc or durable stainless steel. These clamps can accommodate glass thicknesses of 3/8" (10 mm) and are designed to be applied on 2" (51 mm) tubing using a radius base. The included pin can be used to prevent glass slippage by drilling a notch in the glass. These versatile clamps are commonly used for partitions, mezzanines, windbreaks, railings, and other commercial applications. To secure the Z-Clamp to the tubing, use CRL Cat. No. ZBOLT14 (Bolt) or Cat. No. RN1420 (Rivet-Nut). Each clamp comes with appropriate gaskets, and a variety of finishes are available to match almost any commercial decor.

Key features include:

• Usable on wood or metal radius
• Suitable for 3/8" (10 mm) glass
• Ideal for partitions, mezzanines, windbreaks, railings, and more
• Use monolithic tempered glass
• All styles include steel pins for optional use through holes in glass to prevent slippage
• Custom painted finishes available upon request
