Product Overview

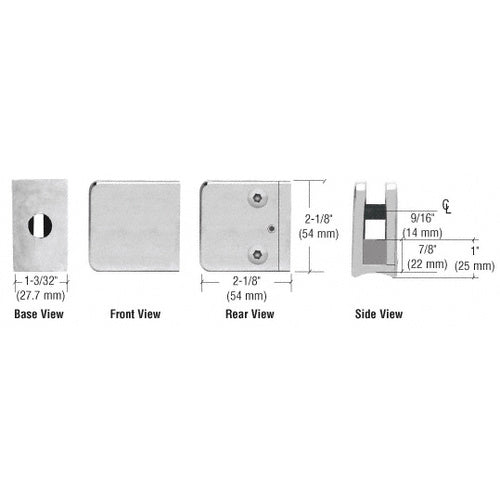

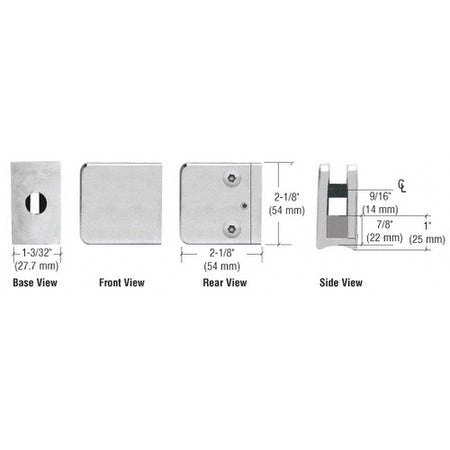

CRL Z-Series Clamps offer a choice of round or square shapes and are available in economical zinc or durable stainless steel construction. These clamps can confidently accommodate glass thicknesses of 3/8" (10 mm) and are specifically designed for use on 2" (51 mm) tubing with a radius base. By drilling a notch in the glass, the included pin with each clamp effectively prevents glass slippage. These clamps are commonly used for partitions, mezzanines, windbreaks, railings, and various other commercial applications. To secure the Z-Clamp to the tubing, use CRL Cat. No. ZBOLT14 (Bolt) and Cat. No. RN1420 (Rivet-Nut). Each clamp comes with appropriate gaskets, and a wide range of finishes are offered to match nearly any commercial decor.

Key Features:

• Suitable for use with Wood or Metal Radius
• Compatible with 3/8" (10 mm) Glass
• Ideal for Partitions, Mezzanines, Windbreaks, Railings, and more
• Can be used with Monolithic Tempered Glass
• Includes Steel Pins to prevent Glass Slippage
• Custom Painted Finishes Available Upon Request
