Product Overview

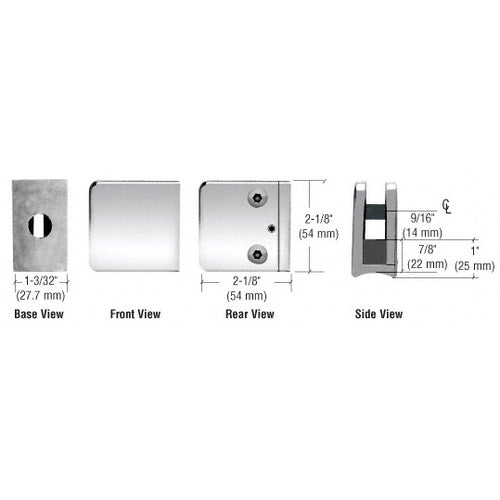

CRL Z-Series Clamps are available in round or square shapes and are offered in either economical zinc construction or durable stainless steel construction. The Z-Series Glass Clamps can accommodate glass thicknesses of 3/8" (10 mm) and are specifically designed to be used on 2" (51 mm) tubing. By drilling a notch in the glass and using the included pin, glass slippage can be effectively prevented. These clamps are commonly utilized for partitions, mezzanines, windbreaks, railings, and various other commercial applications. CRL Cat. No. ZBOLT14 (Bolt) and Cat. No. RN1420 (Rivet-Nut) must be used to firmly secure the Z-Clamp to the tubing. Each clamp includes appropriate gaskets, and a range of finishes are available to complement different commercial decors.

Key Points:

• Can be used on wood or metal radius
• Designed for 3/8" (10 mm) glass
• Ideal for partitions, mezzanines, windbreaks, railings, and more
• Use monolithic tempered glass
• All styles include steel pins for optional use through holes in glass to prevent slippage
• Use monolithic tempered glass
• Custom painted finishes are available upon request

Product Warning: For both interior and exterior applications, CRL strongly recommends pinning each glass panel as required, especially when the glass is not supported by the bottom edge, to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.

Stainless Steel Advisory: While stainless steel is corrosion-resistant, it is not entirely rust or stain-proof. CRL recommends periodic maintenance to help preserve its factory finish.
