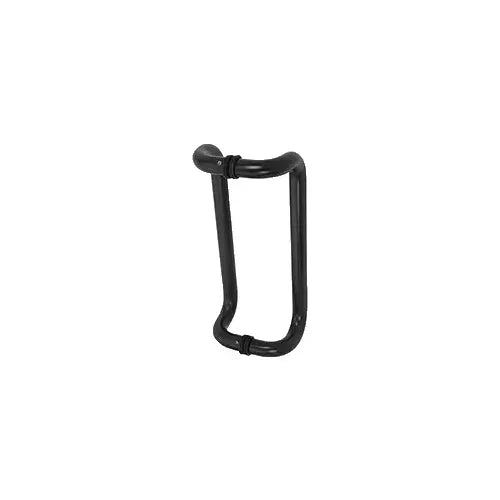

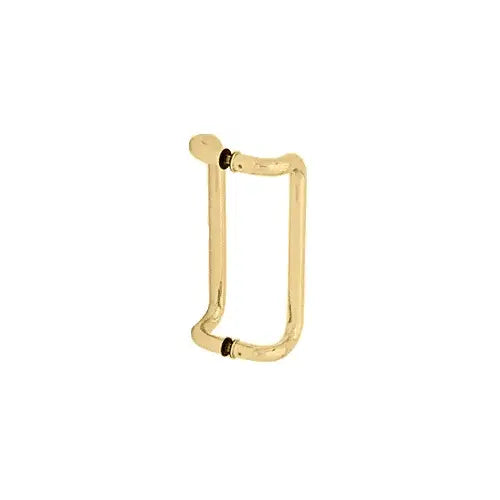

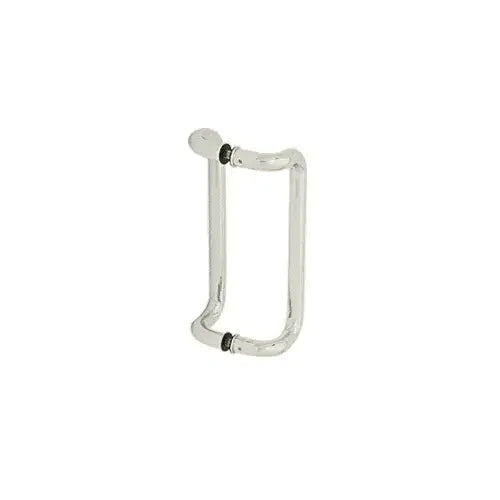

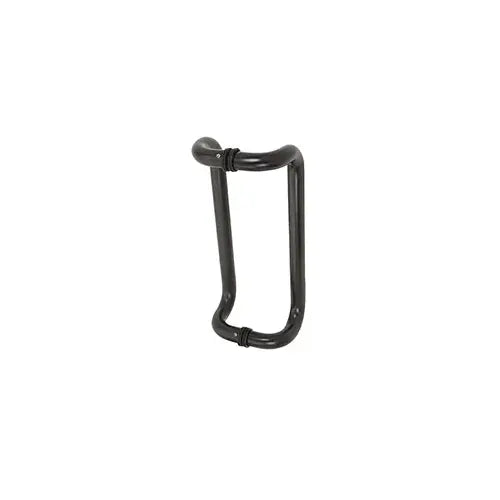

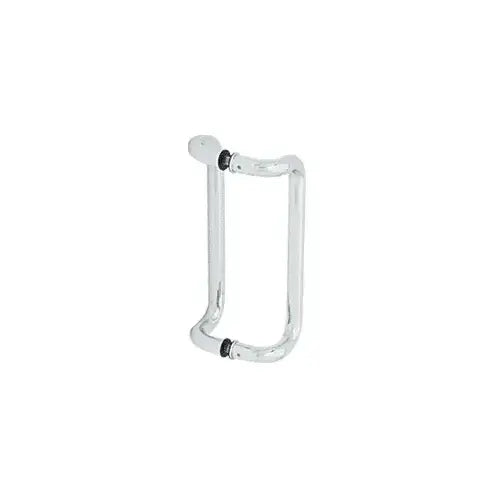

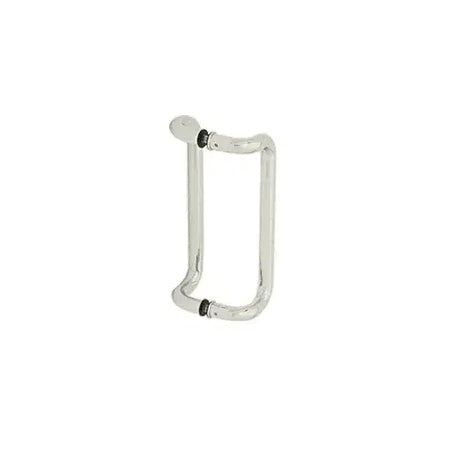

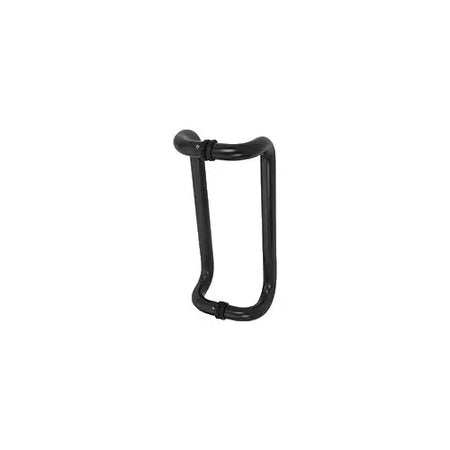

CRL 10" Glass Mounted Offset Pull Handle
Regular price
$153.00
Couldn't load pickup availability
Product Overview
| Diameter | 1 in. (25 mm) |
|
Glazing Thickness
|
3/8 in. To 3/4 in. (10 mm To 19 mm) |
| Material | Stainless Steel |
|
Mounting Center To Center
|
10 in. (254 mm) |
|
Mounting Hole Diameter
|
5/8 in. (16 mm) |
|
Mounting Type
|
Back-to-Back |
|
Style Washer Diameter
|
1-1/4 in. (32 mm) |
|
Style Washers
|
Yes |
This CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel or Brass Tubing.
Offset: 3" (76 mm) Center-to-Center
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish
Metal Washers and Rubber Gaskets
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- Use Monolithic Tempered Glass
