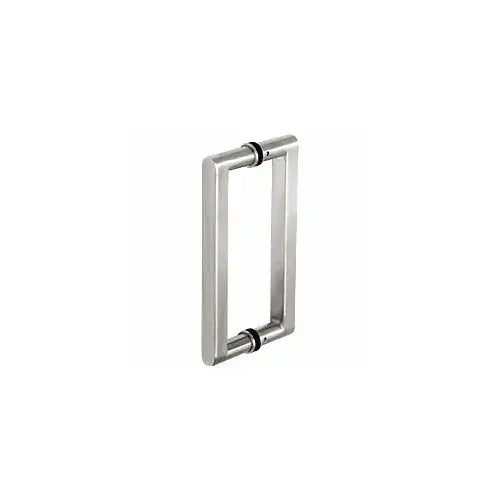

CRL 10" Glass Mounted Square Back-to-Back Pull Handle
Regular price
$216.70
Couldn't load pickup availability
Product Overview
| Glazing Thickness | 3/8 in. To 3/4 in. (10 mm To 19 mm) |
| Mounting Center To Center | 10 in. (254 mm) |
| Mounting Hole Diameter | 5/8 in. (16 mm) |
| Mounting Type | Back-to-Back |
CRL Contemporary Square Tubular Pull Handle are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" tempered glass. Stock sizes range from 10", 12", 18" and 24" length. Standard finishes are polished stainless and brushed stainless. The pulls are constructed of 1" diameter stainless-steel tubing.
SPECIFICATIONS:
For Use with: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish
Metal Washers and Rubber Gaskets
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Extra Bolts Available, Sold Separately
- Available in Four Sizes and Two Finishes
