CRL A.D.A. 8.5 Lbs. Exterior 105º Hold Open 3/4" Long Spindle Overhead Concealed Closer Body With Mounting Clips - CRL9970

This CRL Overhead Concealed Closer for Patch Fittings and Door Rails is A.D.A Compliant at 8.5 lb. opening forced for exterior doors and features a longer spindle approximately 3/4" (19 mm), the preferred length when used in conjunction with Patch Hardware Fittings. The closer has dual action valves for closing operation (one valve for closing, one valve for latching). 90° and 105° Hold Open models are available. Interchangeable with International, Jackson and similar brands of Overhead Concealed Closers. Mounting Clips and included with each Door Closer Body.

Note: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.

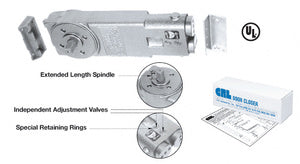

Extended Length Spindle
3/4" (19 mm) Length Spindle for use with Patch Fittings and Door Rail Hardware or when extra reach is needed.

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

Product Warning: Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body
