Product Overview

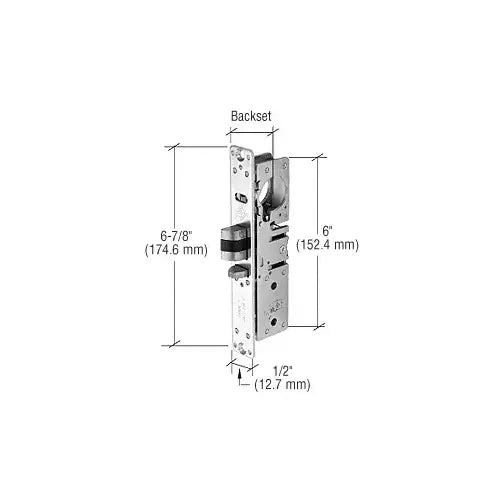

CRL Adams Rite® Deadlatch Locks is field reversible for opposite hand. Key-Controlled Dogging. Lock accepts standard 1-5/32" (29 mm) diameter mortise key or thumbturn cylinders with AR MS-Type Cam.

• 1/2" (13 mm) Throw
• Cylinder Backsets: 31/32" or 1-1/8" (25 or 29 mm)
• Field Reversible
• Accepts Standard 1-5/32" (29 mm) Diameter Mortise Key or Thumbturn Cylinder with AR MS-Type Cam
• Faceplate (Optional)
