CRL Brushed Stainless 90 Degree Left Hand Sidelite Patch with 1NT300 Insert - PH42LBS
Couldn't load pickup availability

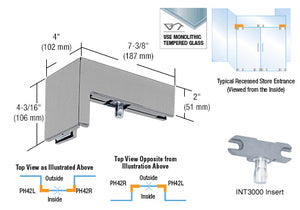

The CRL 90 Degree Left Hand Sidelite Mounted Transom Patch is used to support a transom from a sidelite glass panel. It comes with 1NT300 Insert for mounting a door with CRL's PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A 1NT306 Transom Patch Door Stop Insert can be used to create a one way door.
Glass Fabrication Required:
Three 3/4" (19 mm) Diameter Holes and One Corner Notch;
Door and Panels Flat Polished; No Miters Required.
Comes With: Template and Instructions
Product Warning: These fitting are not for use with laminated glass.
Works with 2-9/16" (65 mm) Pivot Setback Door Patch Fittings | For 3/8" (10 mm) Glass Only | Left and Right Handed
