Product Overview

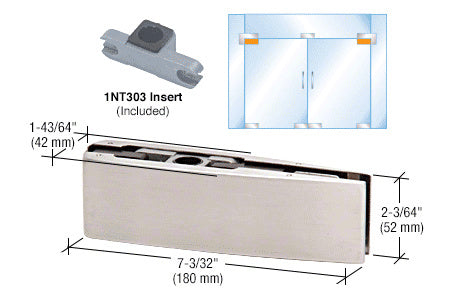

The CRL Curved Top Door Patch Fitting comes with the 1NT303 Insert and is specifically designed for use with our CRL860 Top Walking Beam Pivot, 1NT401 Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32" (15 mm) Diameter type pivots. It includes gaskets to accommodate 3/8" or 1/2" (10 or 12 mm) Glass.

Key Specifications:

• 2-11/16" (68 mm) Pivot Setback
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

Product Warning: Please note that these fittings are not suitable for use with Laminated Glass.

Stainless Steel Advisory: Although Stainless Steel is corrosion-resistant, it is not entirely rust or stain-proof. We recommend regular maintenance to preserve its factory finish.
