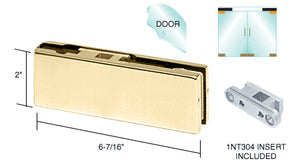

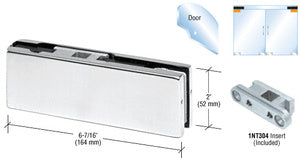

CRL European Top Door Patch Fitting with 1NT304 Insert

The CRL Top Door Patch Fitting includes the 1NT304 Insert for use with our Overhead Concealed Door Closers that have a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

Glass Fabrication: One 3/4" (19 mm) diameter hole and corner notch

Product Warning: These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

European 2-9/16" (65 mm) Pivot Setback | High Density Cast Body | Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
