Product Overview

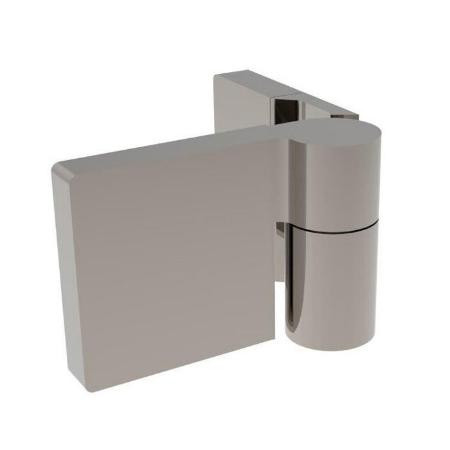

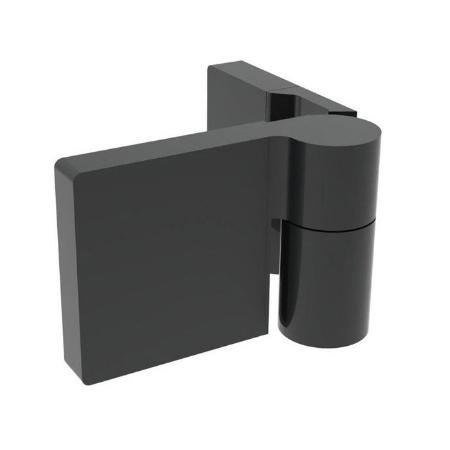

The Lugano Series Hinge boasts a sleek and modern design and is designed for 5/16 to 3/8 inch (8 to 10 mm) glass. All fasteners are concealed, and the hinges are self-centering within 60 degrees of the closed position. Using two hinges allows for a maximum door width of 35 inches and a maximum weight of 99 lbs (44 kg).

Additional features include:

• Rise and Fall action of 3/16 inch (5mm)
• Sleek New Design - Compatibility with 5/16 to 3/8 inch (8 to 10 mm) glass
• Suitable for a Pitched Curb
• No Ledge for Wheelchair Accessibility
• Flush Mount Inside for Easy-to-Clean Glass
• Snap-on Covers to Conceal Screws
• Rigorous Testing to 100,000 Cycles
• 5x More than the Industry Standard

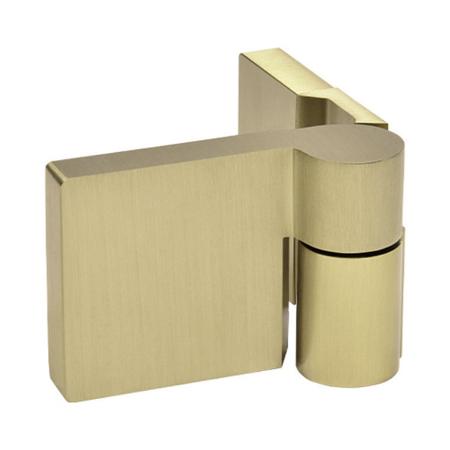

Brass Finish Advisory: It's important to note that while brass is durable, it is prone to oxidation, which can cause brass finishes to look tarnished over time, regardless of how the hardware is initially stored or packaged.
