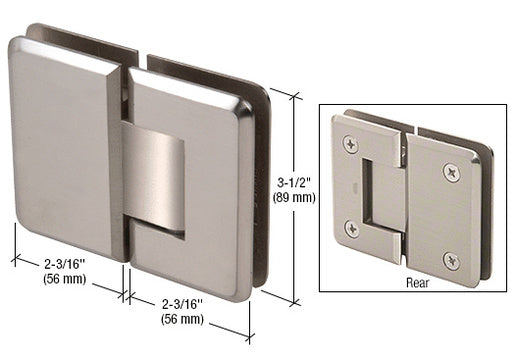

CRL Pinnacle 180 Series 180 Degree Glass-To-Glass Standard Hinge

CRL Pinnacle 180 Series 180 Degree Glass-To-Glass Standard Hinge

Regular price $95.00 USD
Regular price Sale price $95.00 USD
Sale Sold out
Color

The CRL Pinnacle Hinge is similar to our popular Geneva Series Hinge, but with one design change: Pinnacle has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations.

Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Self-Centering with Reversible 5 Degree Pivot Pin | 180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position) | Use Monolithic Tempered Glass
