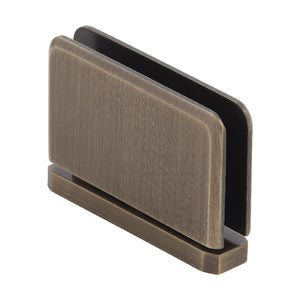

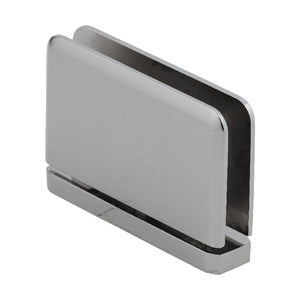

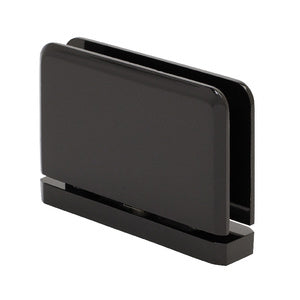

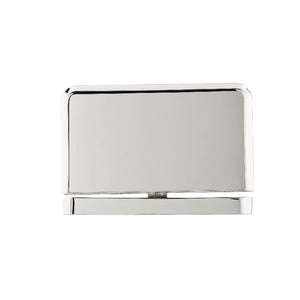

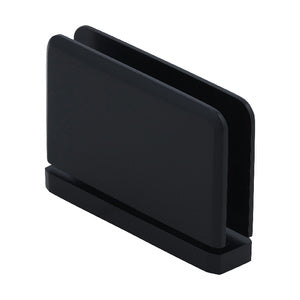

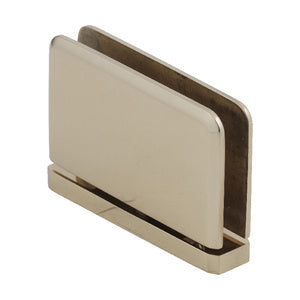

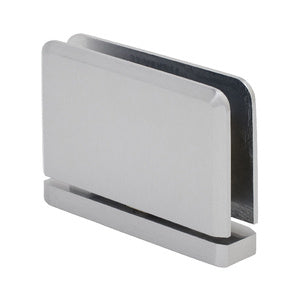

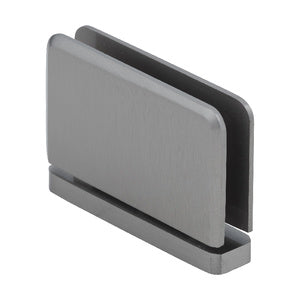

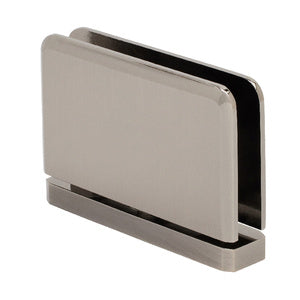

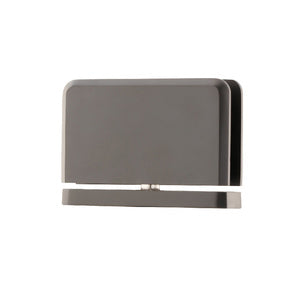

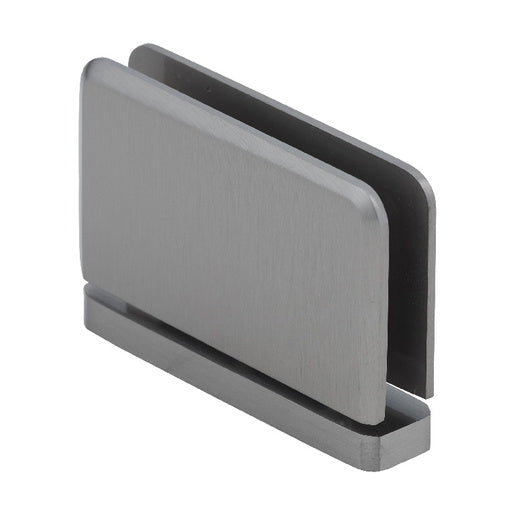

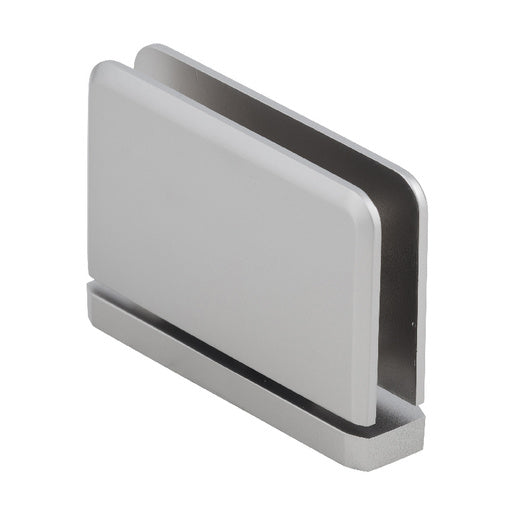

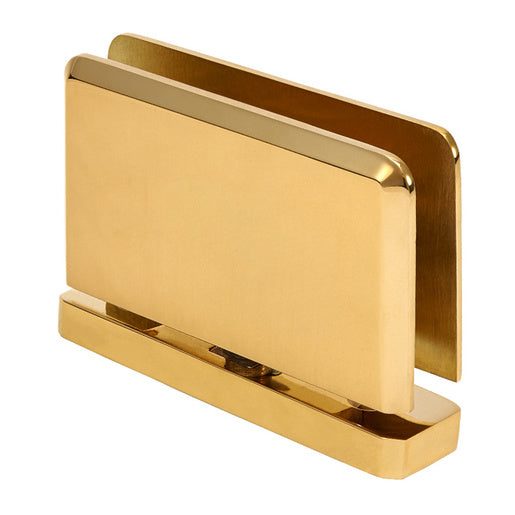

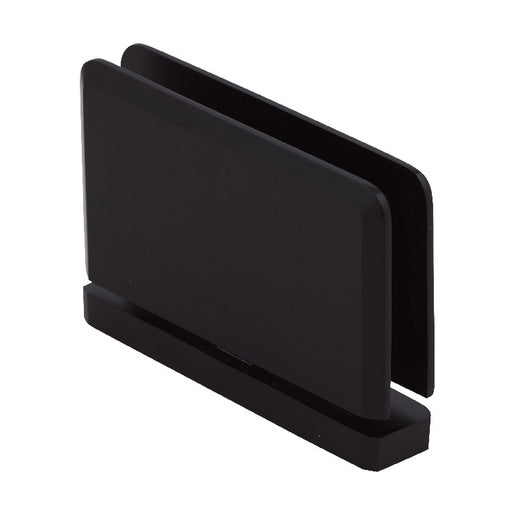

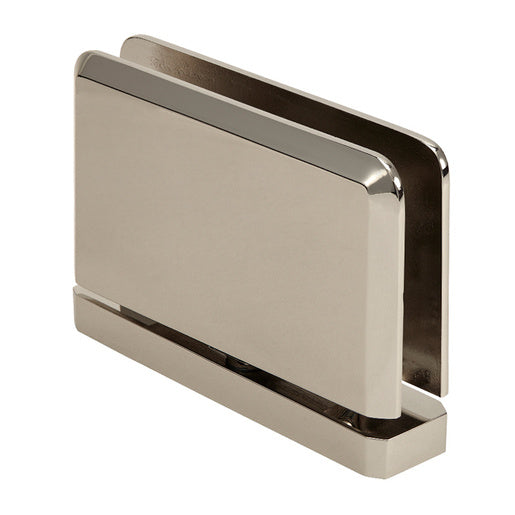

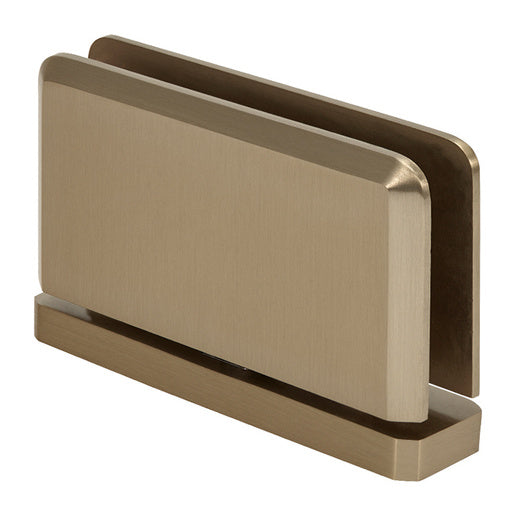

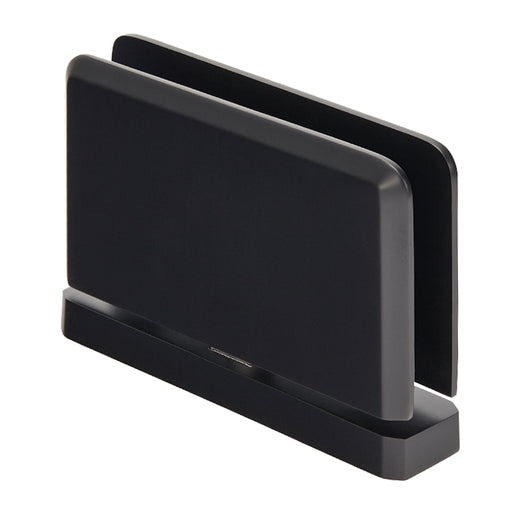

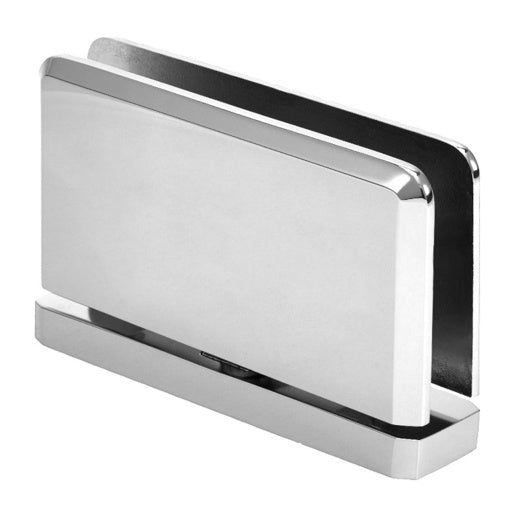

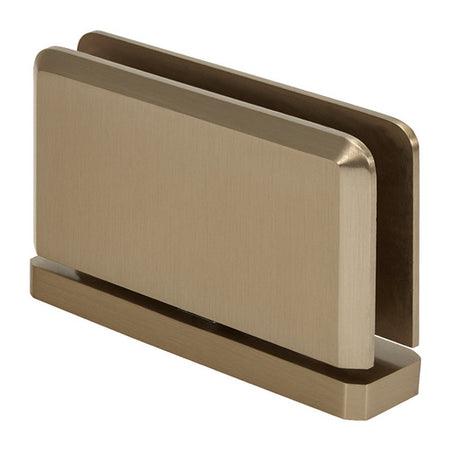

CRL Prima 01 Series Top or Bottom Mount Hinge

CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Option Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 Degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures are not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System (Must order HAB01 Block Separately).

Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Top or Bottom Mount (Can be Adapted to Deluxe Header Kit) | Self-Centering with Optional 5 Degree Pivot Pin Set | Available in Beautiful Finishes | Use Monolithic Tempered Glass
