CRL SDC Emlock® Narrow Profile Single Electromagnetic Lock - SDC350A
Couldn't load pickup availability
Product Overview
| Brand | SDC EMLock |
| Certification | ANSI/BHMA Grade 1,ANSI/BHMA Grade 1 |
| Height | 2-1/8 |
| Holding Force | 12001200 |
| Input Voltage | 12/24 Volts,12/24 Volts |
| Length | 12-1/2 |
| Type | Single Electromagnetic Lock,Single Electromagnetic Lock |
| UL Listed | Yes |
| Width | 1-11/16 |

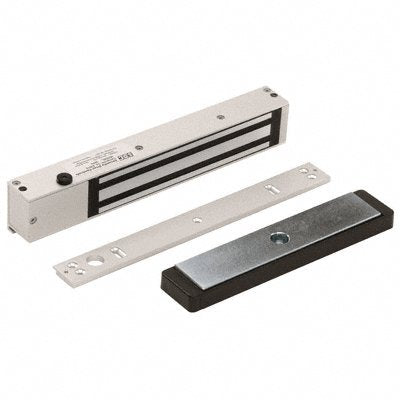

The CRL SDC® EMLock® Single Narrow Profile Electromagnetic Lock provides 1200 pounds holding force and fail safe access control for perimeter and interior doors that meets building security and fire life safety code requirements. The project only 2-11/16" (68 mm) into the opening, enabling it to blend in exceptionally well with virtually any narrow frame.
SPECIFICATIONS:
Holding Force: 1200 Lbs. (544 kg)
Input Voltage: 12/24 Volts
DC - Automatic Selection
Single EMLock®
12 Volt Current Draw: 540mA
24 Volt Current Draw: 300mA
Dimensions: L = 12-1/2" (318 mm) x H = 2-1/8" (54 mm) x W = 1-11/16" (43 mm)
Weight: 9.5 lbs. (4.3 kg)
Narrow Profile Body Will Retrofit Discontinued Locknetics 350+ Magnetic Lock Without Modifications | Fully Automatic 12/24VDC Selection | 1200 Lbs. Holding Force | Full Monitoring Standard | ANSI/BHMA A156,23 Grade 1 Compliant
