- Outside Pull has Knock-Out for Keyed Cylinder Lock
- No Keeper Required
CRL White Clamp - Style Surface Mount Handle 4-15/16" Screw Holes - C1116
Regular price
$68.40
Couldn't load pickup availability
Product Overview

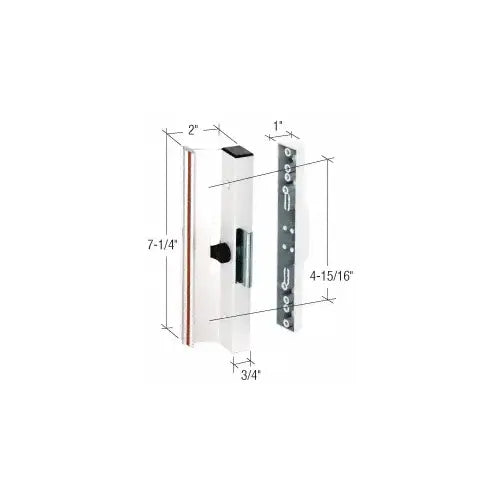

| Body Length | 7-1/4 |
|
Body Width
|
3/4 |
| Entry Trim | DH308103U630,DH308103U613 |
| Field Sizeable | Yes |
| Finish / Color | White |
| Handing | Non Handed |
| Handle Length | 7-1/4 |
| Keyed | No |
| Material | Aluminum |
| Mortise Mounted | No |
| Mounting Holes | 4-15/16 inches |
| Mounting Type | Surface |
| Protrudes | 2 |
| Pull Only | No |
| Weight Capacity | Not Rated |
Used by many patio door manufacturers, this CRL Handle Set has a black extruded aluminum inside latch and a black diecast outside pull with a knock-out for inserting a keyed cylinder lock if desired. The clamp profile is 1/4" (6.4 mm) with a 1/2" (12.7 mm) projection (when clamp is in the locked position). This stamped steel clamp flips down to engage door jamb. One inside pull and latch assembly, outside pull and installation fasteners per package.
